Pipe Sizes, Pipe Threads, Pipe Flanges in AutoCAD

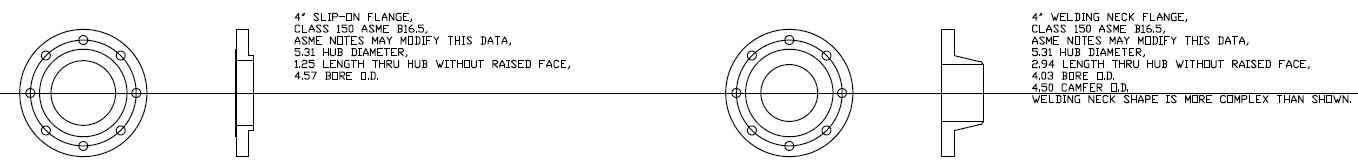

Some handy data and drawing of pipes, threads and Class 150 flanges I needed. Mainly sizes 2-1/2, 3, 4, 6, and 8 but some data and drawings from 1/2 to 12. Some Strainers, Gate Valves and Butterfly valves in side view. Certainly not complete, but some may be useful to you. All in 2D. AutoCAD 2000 or later.







The AutoCAD file: 091_pipe_sizes_threads_flanges.dwg



7/2/17, 7/19/17
