Catenary Calculator on Excel
Calculates catenary geometry, sag, length. Calculates angles and forces at the supports.
You can see the steps and how outputs were calculated. All formulas can be examined.
All done by formulas. No solvers, no macros, no VBA.
The spreadsheet: 099-Catenary.xls (size: 95 KB)

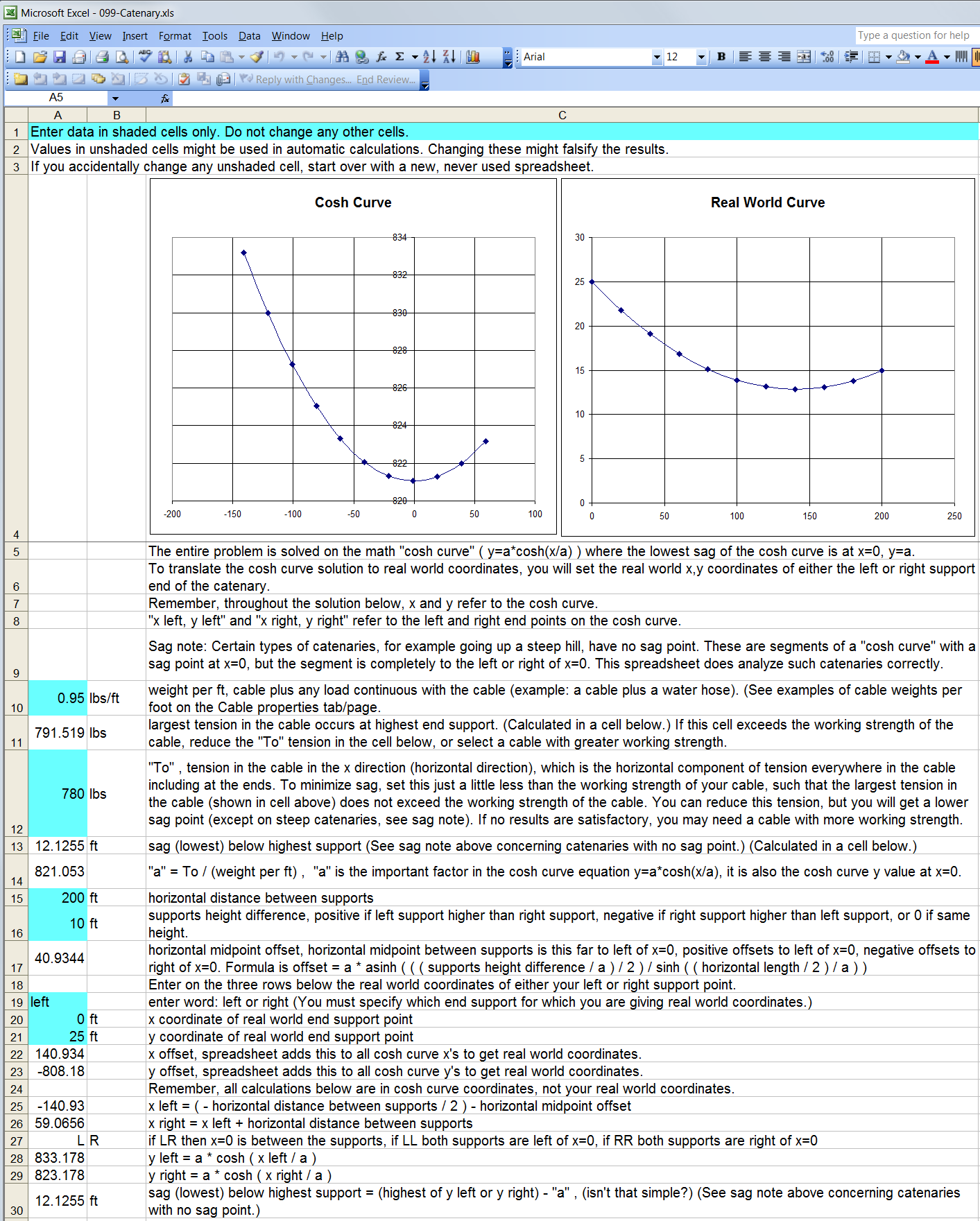

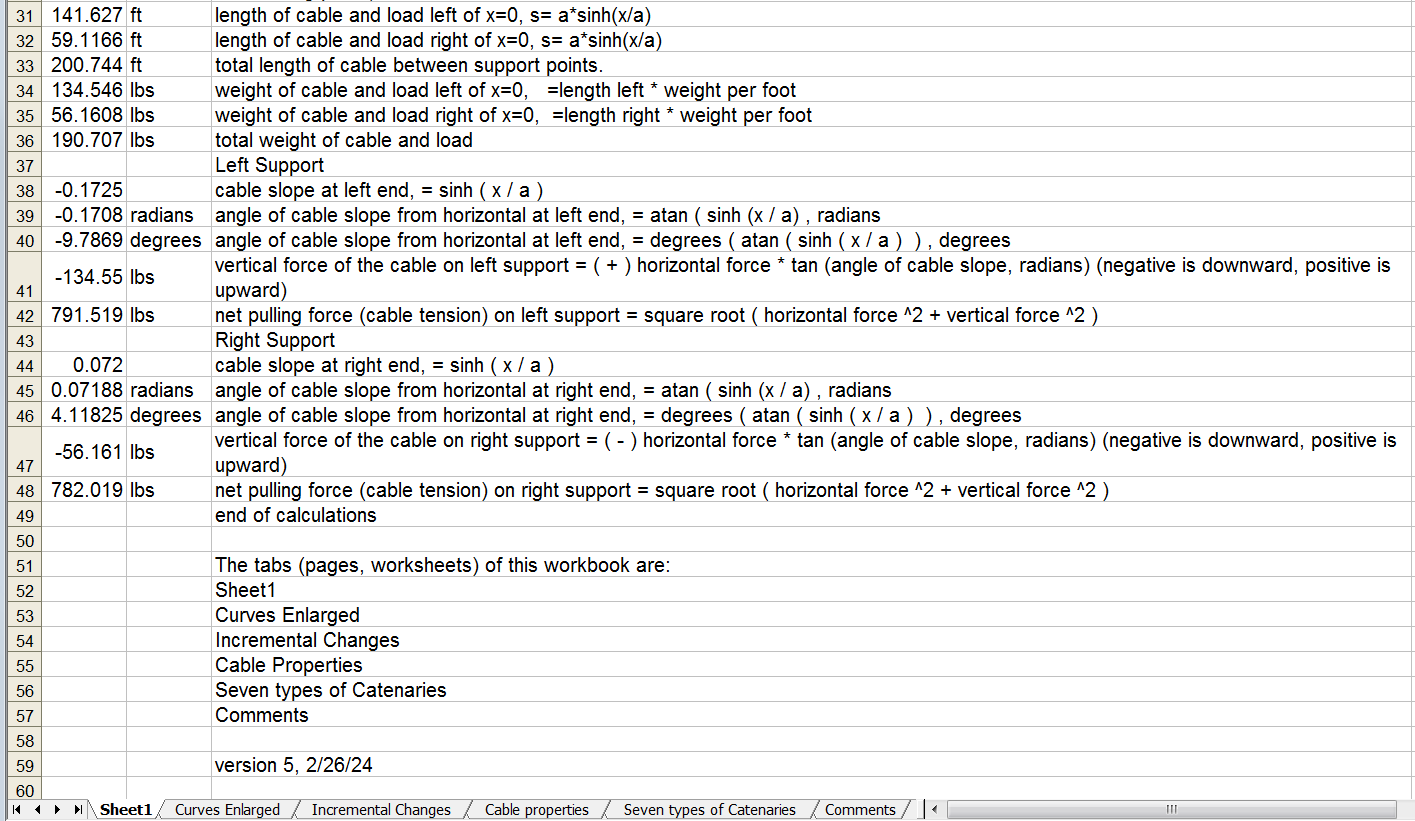

screenshot: tab: sheet1

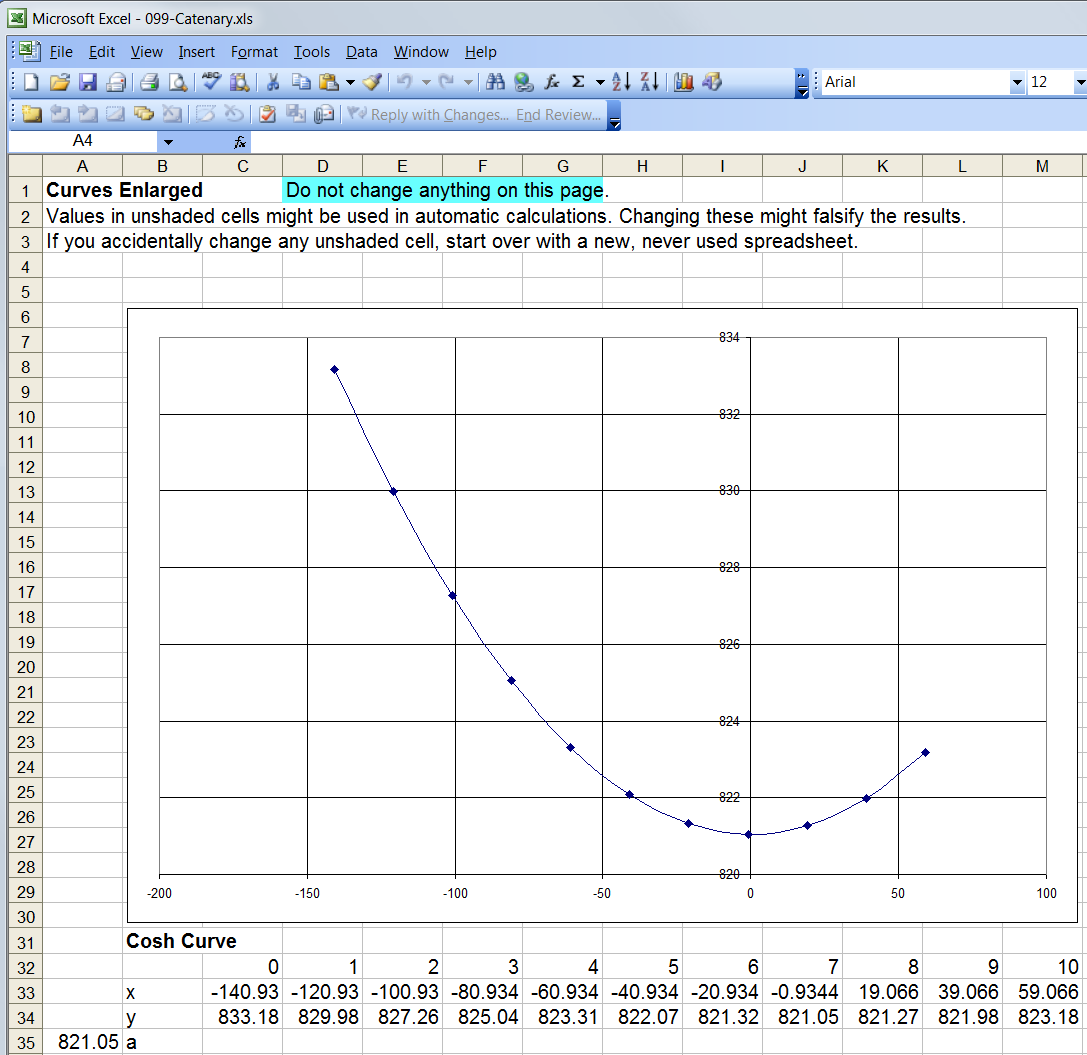

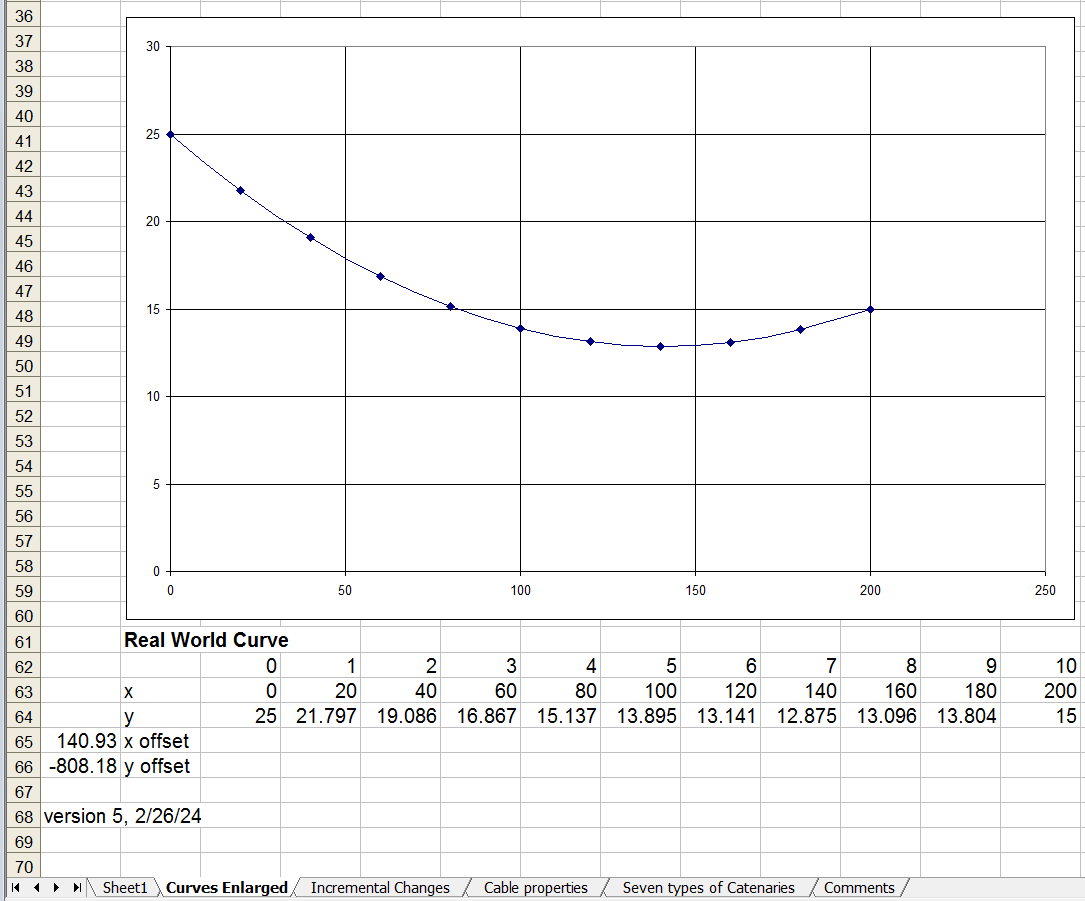

screenshot: tab: Curves Enlarged

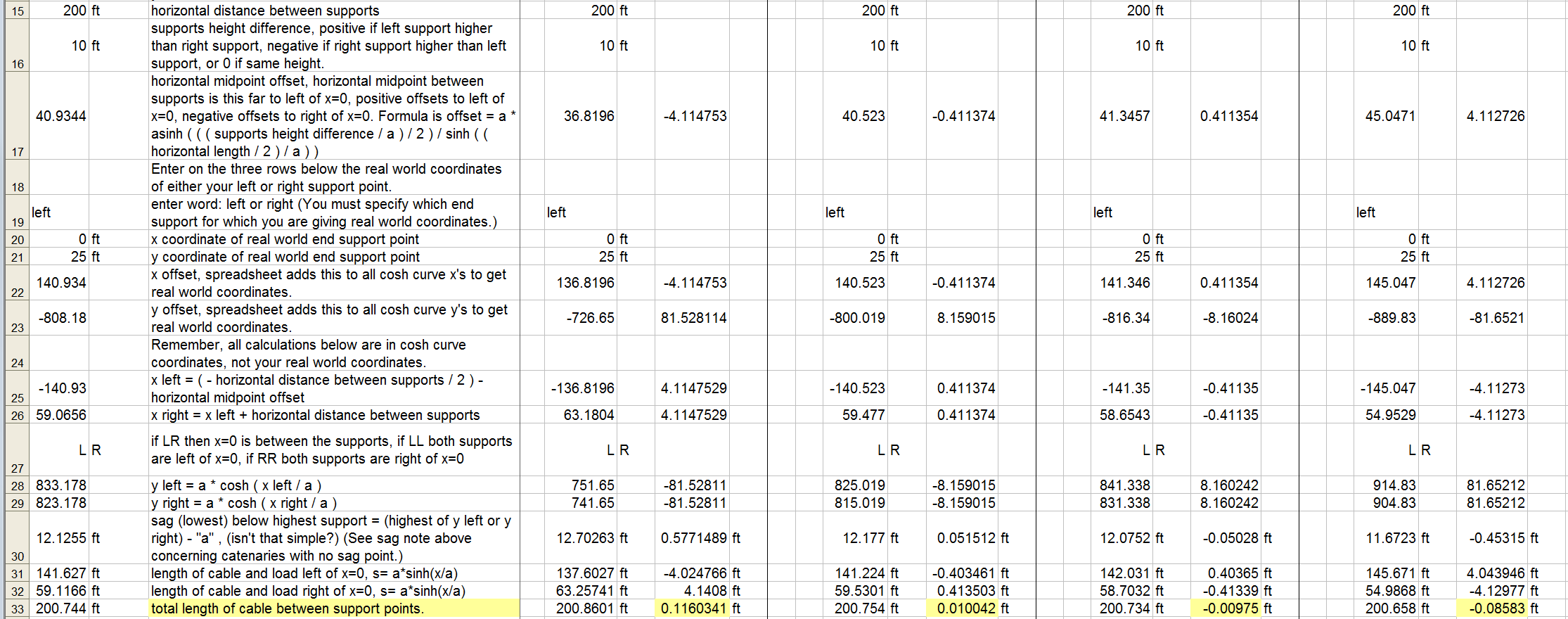

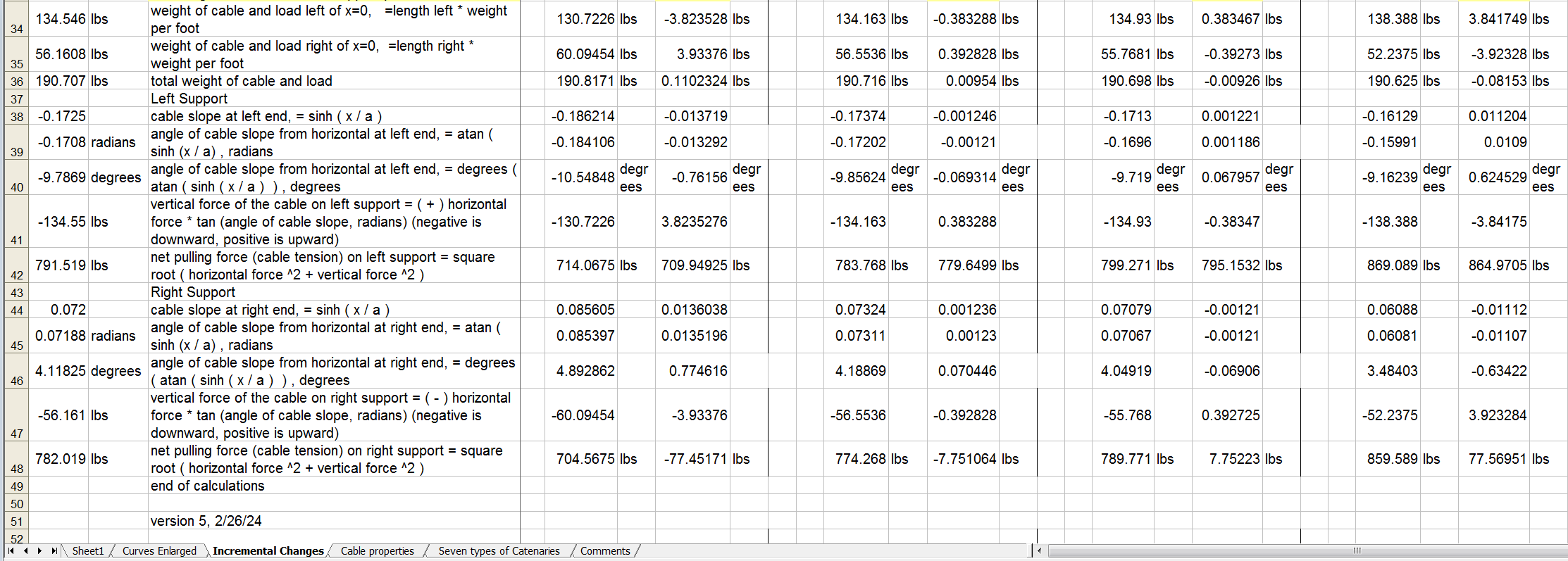

screenshot: tab: Incremental Changes

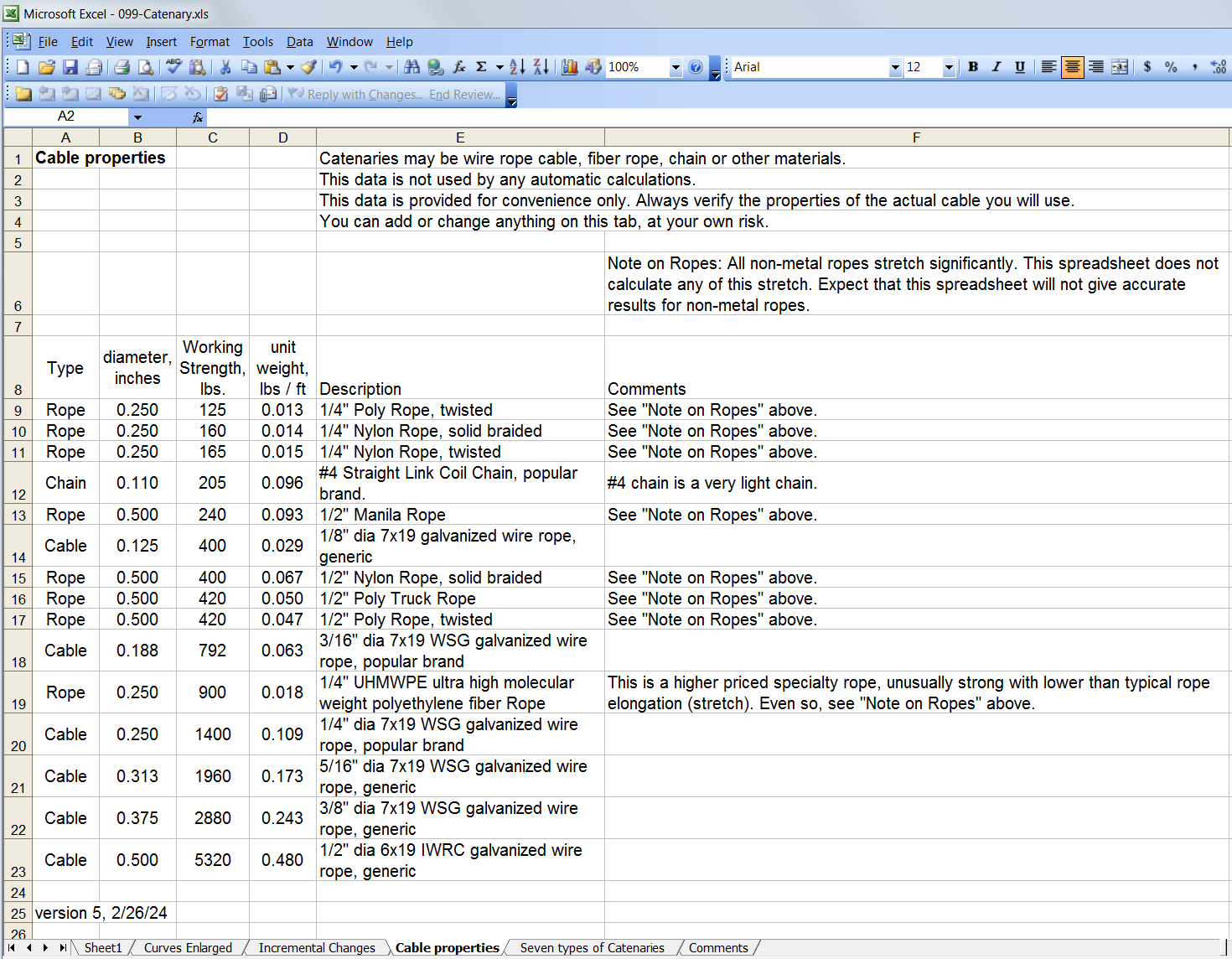

screenshot: tab: Cable Properties

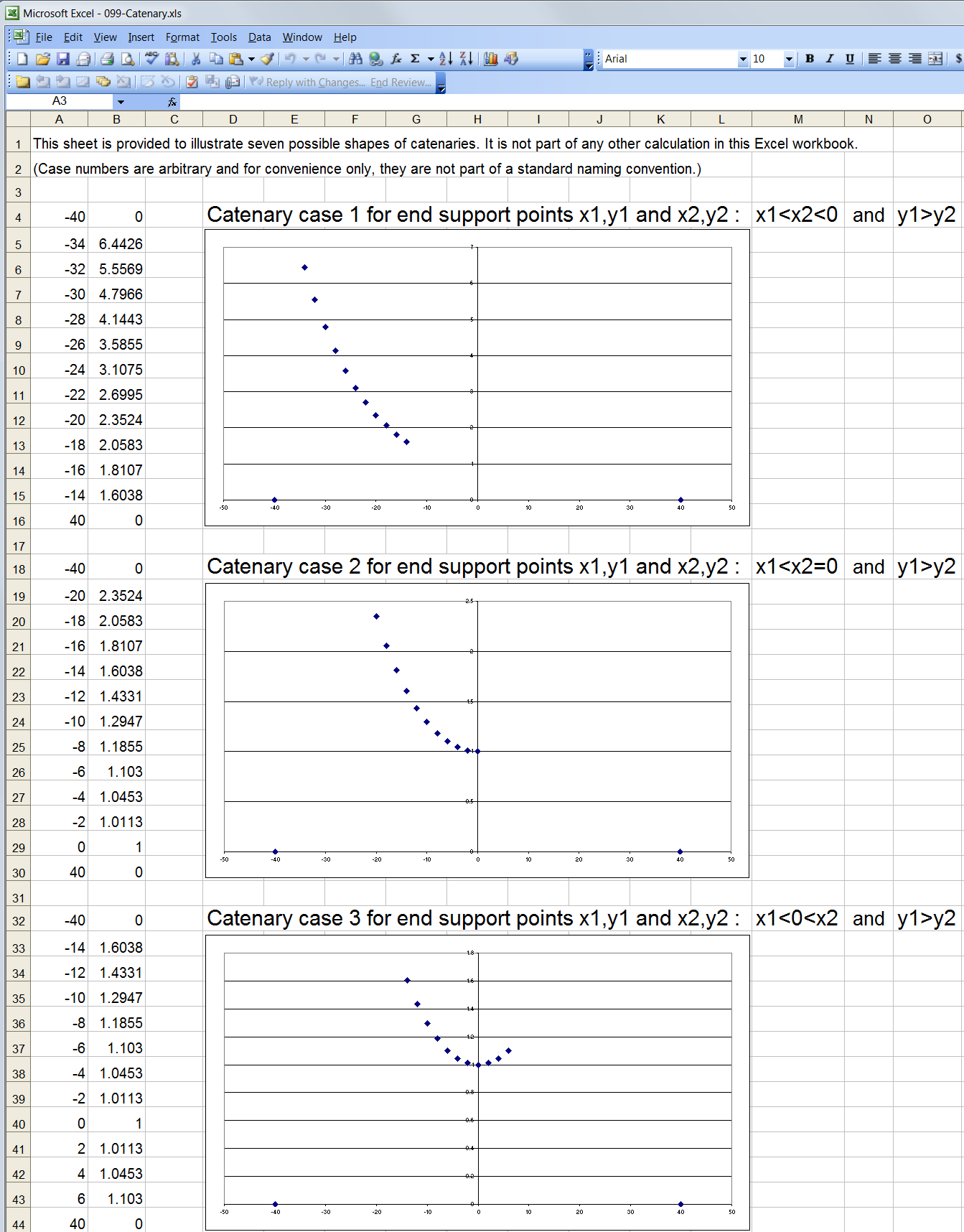

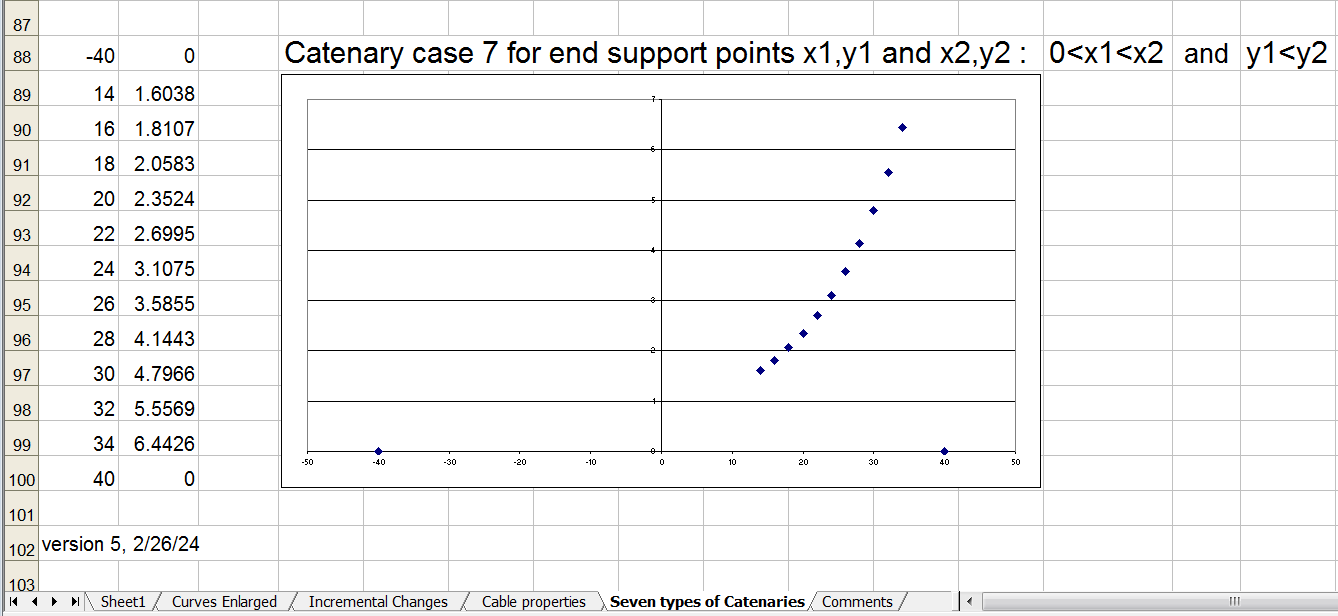

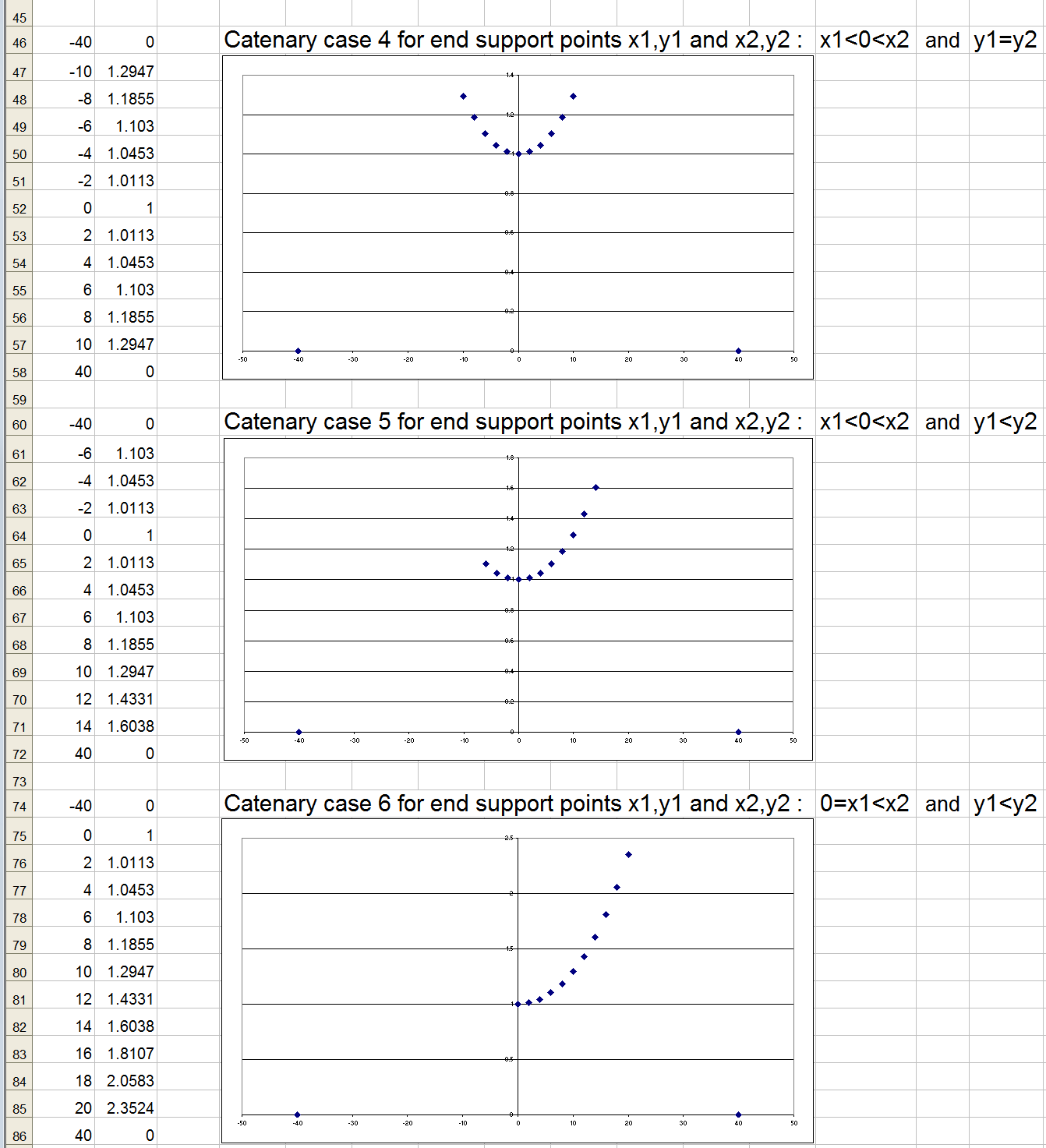

screenshot: tab: Seven types of Catenaries

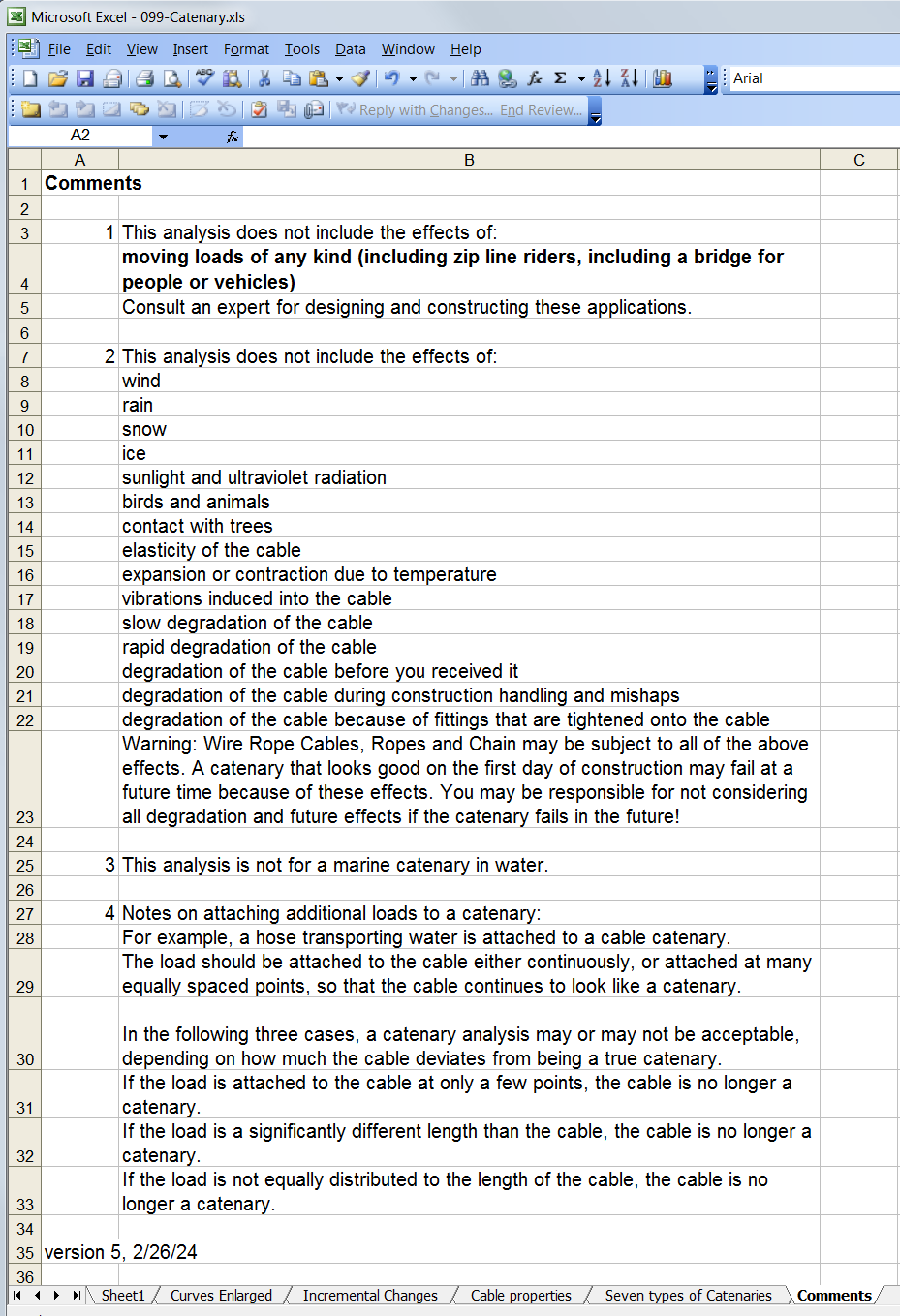

screenshot: tab: Comments
2/13/24, 2/14/24, 2/23/24, version 5 2/26/24
